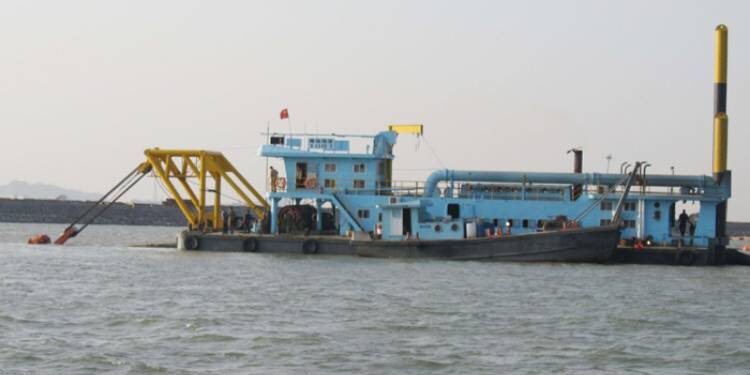

Main Technical specification For Cutter Suct tion Dredger

The dredging depth for the cutter suction dredgeris upto 10m,the discharging distance is 1000m,and the dredging capacity is about 350 cubic meter per hour (Note the whole ship is controlled by hydraullic power)

1.The structure for the hull is box structure. the hull d mension:23m5.6m*2m
2.Reamericutter Diameter: 1750mm Material: wear re isistant manganese alloy closed tooth style
3.Pump:overall flow capacity(2500 my/h),head(60m)
4.Main Diesel Engin:power 550kw
5.Auxiliary DieselEngine:power200kw
6.Underwater Arm Dimension:14m0.8m0.6m
7.Hull material bottom plate: 8mm two sides: 6mm dec ck:4.5mm(anti-skidplate)
8.Fixed Piles:twopieces

FOCUS cutter suction dredger Technical Parameters

Item/model SLK-CS200 SLK-CS250 SLK-CS250A SLK-CS300
Pump size 8inch 10inch 10inch 12inch
Pump flow 800m3/h 1100m3/h 1500m3/h 2000m3/h
Capacity 160CBM/H 220CBM/H 300CBM/H 400CBM/H
L*B*H 15.5*7.2*2m 15.5*7.2*2m 15.5*7.2*2m 21*7.5*2m
Dredging depth 8m 10m 10m 10m
Average draught 1.3m 1.3m 1.3m 1.4m
Discharge distance 600m 1000m 800m 1200m
Diameter suction/discharge pipe 325/300mm 350/350mm 377/377mm 426/410mm
Diameter of cutter head Φ1100mm Φ1100mm Φ1100mm Φ1300mm
Main engine power 258kw 300kw 450kw 600kw
Diameter oil cyclinder 100mm 100mm 100mm 160mm
Emergency genset 15kw 15kw 15kw 15kw





Item/model SLK-CS350 SLK-CS400 SLK-CS450 SLK-CS500 SLK-CS600
Pump size 14inch 16inch 18inch 20inch 24inch
Working load 3000m3/h 3500m3/h 4000m3/h 6000m3/h 8000m3/h
Capacity 600CBM/h 700CBM/h 800CBM/h 1200CBM/h 1600CBM/h
L*B*H 23.5*7.5*2.4m 23.5*7.5*2.4m 23.5*8*2.4m 26*8.5*2.6m 29*10*3.0m
Dredging depth 15m 15m 15m 15m 15m
Average draught 1.6m 1.6m 1.6m 1.7m 2m
Discharge distance 1500 m 1500m 1500 m 2000m 2500m
Dia.suction/discharge pipe 550/500mm 610/550mm 630/570mm 680/650mm 810/780mm
Diameter of cutter head Φ1550mm Φ1550mm Φ1700mm Φ2200mm Φ2450mm
Main engine power 1000kw 1050kw 1200kw 1580kw 2400kw
Diameter oil cyclinder 160mm 160mm 160mm 200mm 250mm
Emergency genset power 24kw 24kw 24kw 30kw 30kw
